Deutz D914L04 Engine Hydraulic Wheel Jumbo Drilling Machine 58KW DW1-24

Name: Deutz D914L04 Engine Hydraulic Wheel Jumbo Drilling Machine 58KW DW124
Brand: Beijun
Price: 145000 USD

Quality Deutz D914L04 Engine Hydraulic Wheel Jumbo Drilling Machine 58KW DW1-24 wholesale

Brand Name : Beijun

Model Number : DW1-24

Certification : CE,ISO,TUV

Place of Origin : China

MOQ : 1

Price : USD 145000-200000 Set

Supply Ability : 100 Set/Sets per Month

Delivery Time : 14-30 days

Packaging Details : Customized packaging

(L*W*H)mm : 9860×1250×1880/2580

Ground clearance(mm) : 250

Total weight Kg : 8600

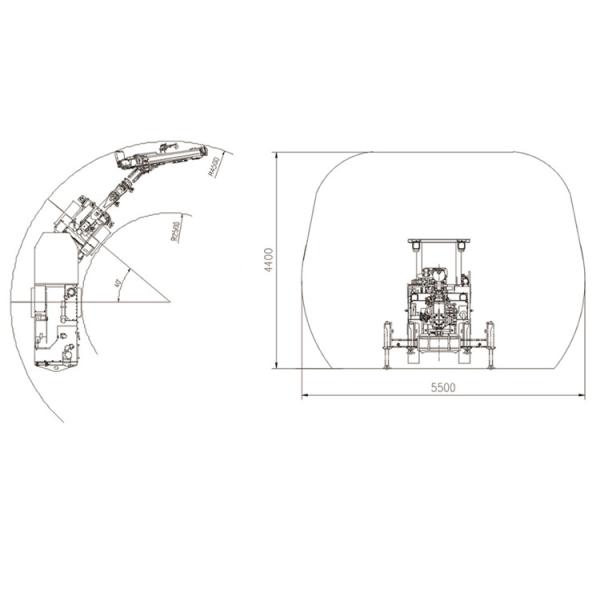

Turning Radius mm : 2400/4800

Traveling speed Km/h : 10

Engine : Deutz D914L04

Rated power : 58KW

Articulated steering angle : ±40°

Contact Now

Features of DW1-24 Wheel Drilling Jumbo: mini compact design, especially suitable for 2.5-3.5m or even larger tunnel blast hole rock drilling operation.

Dimensions
L×W×H(mm)	9860×1250×1880/2580
Ground clearance(mm)	250
Total weight Kg	8600
Turning Radius mm	2400/4800
Traveling speed Km/h	10

Drifter
Model	1838ME	2238
Shank	T38/T45	T38/T45
Hole diameter (mm)	41-76	64-76/76-89
Max. Impact power (Kw)	18	22
Impact rate (Hz)	60	53
System pressure (bar)	230	220
Rotation motors	Independent rotation
Rotation speed (rpm)	0-215	0-130
Max. Rotation Torque (Nm)	1070	1520
Lub. air consump.(L/s)	5	5
Weight (Kg)	170	174
Noise dB(A)	<106	<106
Note: Other models are available

Propelling beam
Model	TF-12LA	TF-10L	TF50-6/10L
Total Length (mm)	5294	4718	4561
Drilling rod length (mm)	3700	3090	1830-3090
Drilling depth( mm)	3400	2700	1550-2750
Weight (including drifter) kg	555	490	725
Propulsion force (KN) 12 12	12	12	12

Deutz D914L04 Engine Hydraulic Wheel Jumbo Drilling Machine 58KW DW1-24

Product Tags:

Jumbo Drilling Machine 58KW

Deutz Engine Jumbo Drilling Machine

Deutz Engine mining jumbo machine

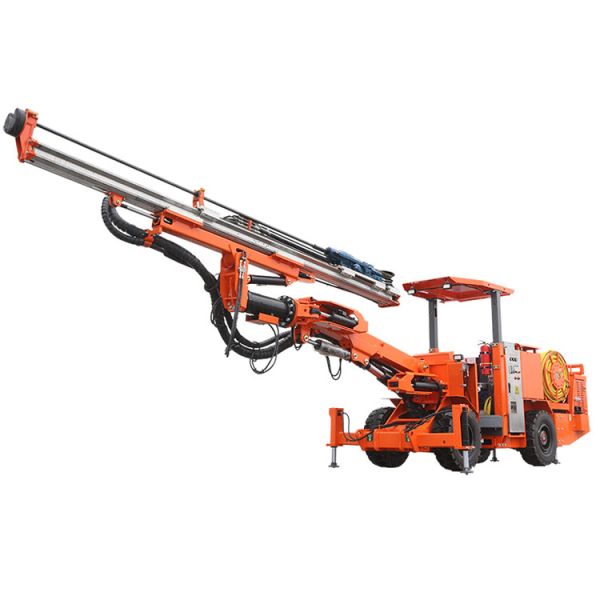

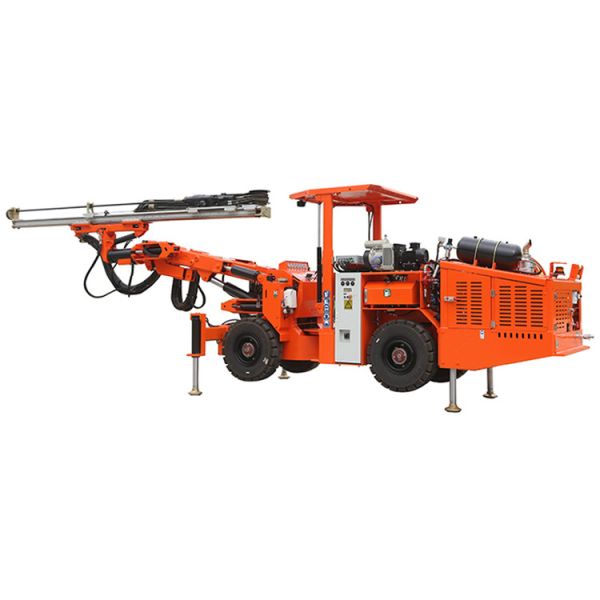

Deutz D914L04 Engine Hydraulic Wheel Jumbo Drilling Machine 58KW DW1-24 Images
